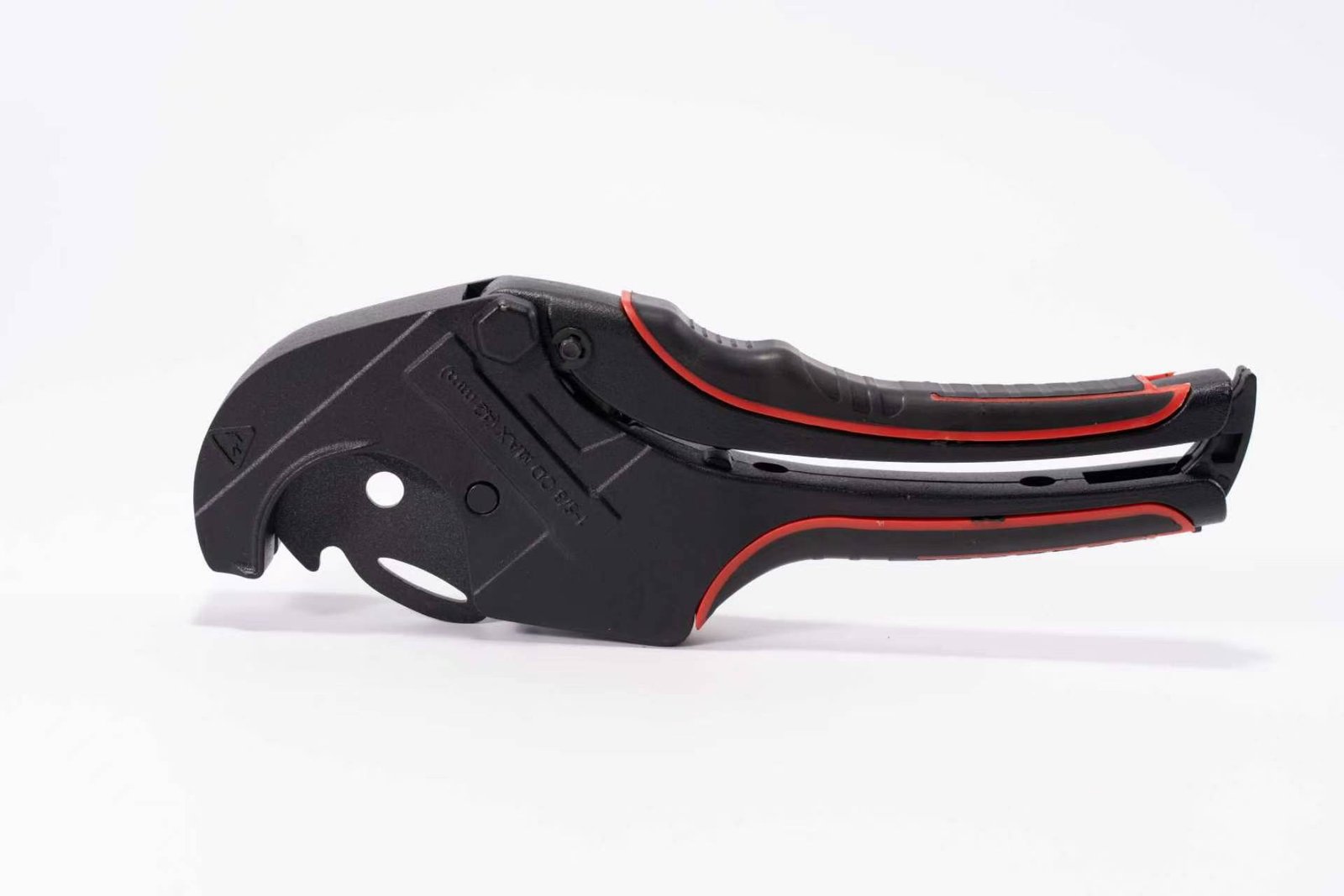

SUMA-C005 is a manual ratchet pipe cutter for for PEX pipes, multilayer pipes, PPR and PVC pipes up to 42 mm. It features a quick-change SK5 blade, die-cast aluminum body, return spring, safety tail lock and an ABS+TPR overmolded handle for comfortable manual cutting.
The SUMA-C005 is a manual ratchet pipe cutter designed for for PEX pipes, multilayer pipes, PPR and PVC pipes with an outside diameter of up to 42 mm. It is used to cut and prepare pipe before connection during plumbing, pipe system installation and maintenance work.
The cutter combines an SK5 blade with a die-cast aluminum body and an ABS+TPR overmolded handle. Its ratchet mechanism advances the blade progressively, while the return spring reopens the handle for the next stroke. A quick-change blade release simplifies blade replacement, and the safety tail lock keeps the cutter closed during storage and transport.
SUMA-C005 is suitable for plumbing tool distributors, plastic pipe system suppliers, hardware wholesalers and private-label buyers that need a 42 mm ratchet cutter with a replaceable blade, comfortable grip and clean cutting performance.
The SK5 blade is mounted with a quick-change release system that allows the blade to be removed without dismantling the complete cutter body. This reduces the steps required when a worn blade needs replacement and helps distributors present the tool as a serviceable model rather than a disposable cutter.
The ratchet mechanism advances the blade in progressive steps as the handle is operated. This structure reduces the amount of movement required in each stroke and supports controlled cutting through PEX pipes, multilayer pipes, PPR and PVC pipes up to the confirmed 42 mm capacity.
A return spring reopens the handle after pressure is released. During repeated pipe preparation, the automatic return supports a consistent operating rhythm and removes the need to reopen the handle manually after each ratchet stroke.
The main cutter body is made from die-cast aluminum. This construction provides a rigid support structure for the blade and ratchet components while keeping the tool suitable for handheld plumbing and plastic pipe installation work.
The handle uses an ABS base with TPR overmolding on the grip area. The shaped, non-slip contact surface provides a comfortable grip during manual cutting and gives buyers a clear handle-material specification for comparison with basic uncoated models.
The tail lock holds the handles in the closed position when the cutter is not in use. This reduces accidental opening during storage or transport and helps protect the exposed cutting area when the tool is carried with other installation tools.
SUMA-C005 is specified for plastic pipes up to 42 mm outside diameter. The sharp blade and ratcheting cutting movement are designed to produce an easy, clean and flat cut, supporting pipe preparation before connection to compatible fittings.
| Technical Item | Specification |
| Product model | SUMA-C005 |
| Product type | Manual ratchet plastic pipe cutter |
| Maximum cutting capacity | 42 mm outside diameter |
| Compatible pipe materials | PEX pipes, multilayer pipes, PPR and PVC pipes |
| Blade material | SK5 steel |
| Body material | Die-cast aluminum |
| Handle material | ABS with TPR overmolding |
| Cutting mechanism | Ratcheting cutting action |
| Blade replacement | Quick-change release design |
| Handle return | Spring-assisted return |
| Storage lock | Safety tail lock |
| Operation method | Manual cutting |
| Cutting result | Clean, flat cut |
| Power source | Manual – no battery or electricity required |
Compatible materials: PEX pipes, multilayer pipes, PPR and PVC pipes within the confirmed maximum outside diameter of 42 mm.
Working type: The pipe is positioned in the circular cutter opening. Repeated manual operation of the handle advances the SK5 blade through the pipe using the ratchet mechanism, and the return spring reopens the handle for the next stroke. The quick-change release is used when the blade needs replacement, while the tail lock secures the handles in the closed position for storage.
OEM and private-label options can be discussed for distributors, plastic pipe system brands and hardware wholesalers. The final configuration should be confirmed against the approved product sample, branding requirements and order quantity.
SUMA-C005 is specified for plastic pipes with an outside diameter of up to 42 mm.
The confirmed compatible materials are PEX pipes, multilayer pipes, PPR and PVC pipes
The cutter uses an SK5 steel blade.
Yes. The cutter has a quick-change release design that allows the blade to be removed without dismantling the complete cutter body.
Repeated handle operation advances the blade progressively through the pipe, allowing the cutting movement to build in controlled steps.
The spring reopens the handle after pressure is released, preparing the cutter for the next ratchet stroke.
The main body is made from die-cast aluminum.
The handle uses an ABS base with TPR overmolding on the grip area.
It keeps the handles closed during storage and transport, reducing accidental opening when the cutter is not in use.
No. It is a manually operated ratchet pipe cutter.
These applications are not confirmed in the supplied product information and should be tested before they are stated as compatible.
Logo, color, label, barcode, instruction manual and packaging options can be discussed according to the approved sample and order requirements.
