SKU: SUMA-ED-400U
Regardless of whether you’re a DIY handyman hobbyist or a professional, you’ll need a good crimping tool for a plethora of reasons. These all-around beauties can seal, cut, bend, strip, and shape most types of materials depending on their design, and if you’re looking for the best battery cable crimper, you’ve come to the right place.
To sum it up, a cable crimping tool can save you a lot of time and effort when you need to crimp battery cables. If you happen to look for a budget-friendly option, we warmly recommend JOTOOL, who will be your best choice.
Recommended for: Electrical Work, Telecommunications, Aerospace, Automotive Industries.

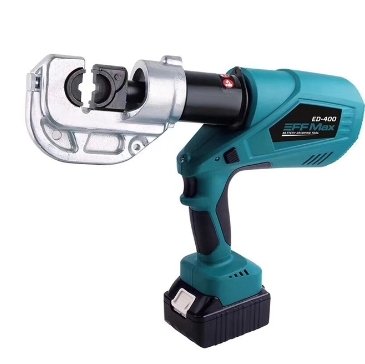

ED-400U Battery Hydraulic Terminal Cable Crimper Range 10-400mm2
1. All tools can be controlled by one key-press the trigger to start working, half losing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
2. LCD Data Display-The Total Crimping Times, Electricity Power, Errors Info can be checked by the Display, also we can special making for the customer to show the pressure if necessary.
3. Air Cooling Heat dissipation system to extend use.
4. Heads Rotate 350 degree in order to gain better access to tight corners or other difficult working areas.
5. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of non-operation the tool is always ready to operate. In addition, we see a lower power-weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
6. The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion
7. USD connect to memory crimping time
Specifications
Crimping force 120KN
Stroke 42mm
Crimping range 16-400mm²
Crimping dies 16,25,35,50,70,95,120,150,185,240,300,400mm²
Battery 2pcs
Charger 1pc
Sealing ring of cylinder 1set
Sealingring of safety valve 1set
