SKU: SUMA-PZ-300
Regardless of whether you’re a DIY handyman hobbyist or a professional, you’ll need a good crimping tool for a plethora of reasons. These all-around beauties can seal, cut, bend, strip, and shape most types of materials depending on their design, and if you’re looking for the best battery cable crimper, you’ve come to the right place.
To sum it up, a cable crimping tool can save you a lot of time and effort when you need to crimp battery cables. If you happen to look for a budget-friendly option, we warmly recommend JOTOOL, who will be your best choice.
Recommended for: Electrical Work, Telecommunications, Aerospace, Automotive Industries.

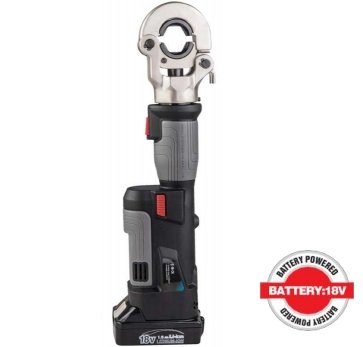

PZ Series with the samll size and a low weight can generate high power and performance , it is the newest addtion to the mini press tool with in-line grip, 2-4 seconds crimp cycle time.
Features
CIRCUIT BOARD DIAGNOSTICKS
Alart you when the battery is low or the tool is too hot or cold.
OlED DISPLAY
*Easy reading on.
*Battery Percentage.
*Pressing Times.
*Fault Code
*Maintenance Note
180 DEGREE SWIVELLING BARREL
Easy access to connections.
TWO STAGES HYDRAULIC SYSTEM
Hydraulic Ram Output provides more force for reliable connection.
ERGONOMIC DESIGN
With light weight and in-line grip easy work overhead and in tight spaces.
Specifications
Crimping force 60KN
Stroke 17mm
Crimping range Cu 300mm2/ Al 240mm2
Time/ Work 2.5-4s (Depend on the dia of cable
Voltage of battery 18v DC
Capacity 1.5Ah
Crimping dies 16,25,35,50,70,95,120,150,185,240,300mm²
Battery 2pcs
Charger 1pc
Sealing ring of cylinder 1set
Sealingring of safety valve 1set
