SKU: SUMA-TPA-8
Punches is one of the most common hole punch tools, which is used to drive fasteners such as nails and dowels, making a hole, or forming an indentation/impression of the tip on a work piece.
Split type hydraulic punching machine is specially used for punching metal plates such as angle iron, flat iron and copper plate. It is especially suitable for operation in the field of electric power, construction and other industries.
Hydraulic hole digger for ease of operation and comfort the operator the tool head can be fully rotatated
Hydraulic Hole Digger Features

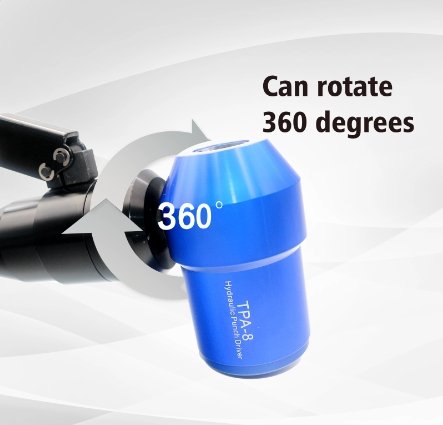

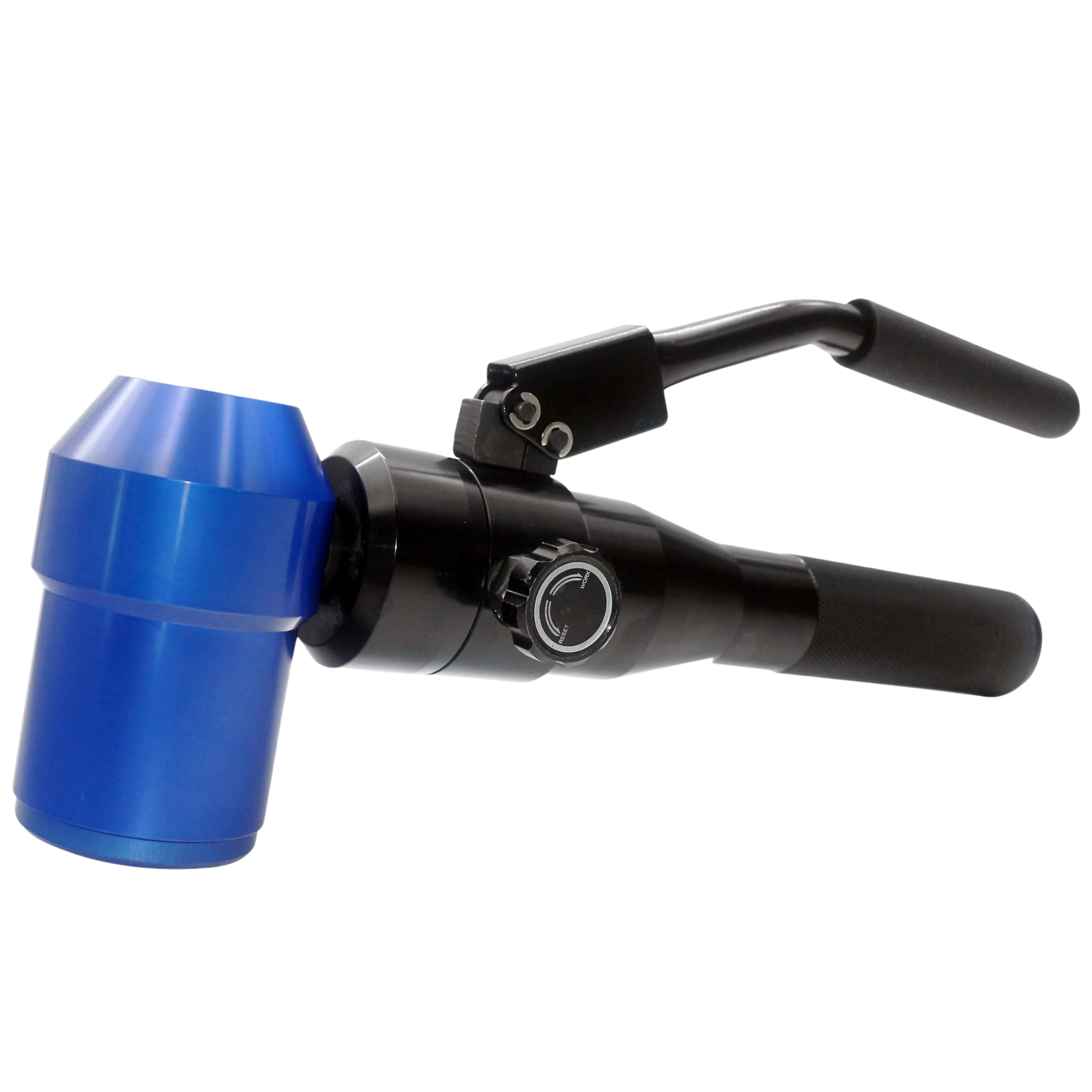

1 The TPA-8 is portable hand hydraulic punch, for ease of operation and comfort the operator the tool head can be fully rotated through 360º.The working head and cylinder are made of aluminum alloy to make the weight much lighter and easy to carry.

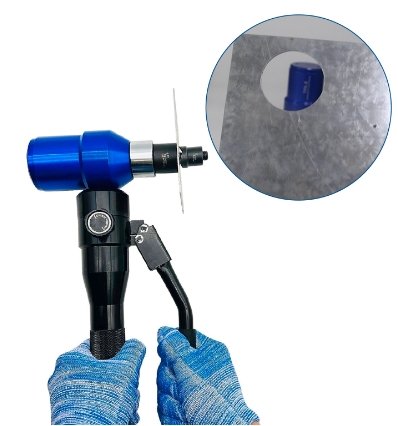

2 It gives clean perforation through 3.5mm thickness mild steel with thickness of 61.5mm max.
3 The same machine with different color.

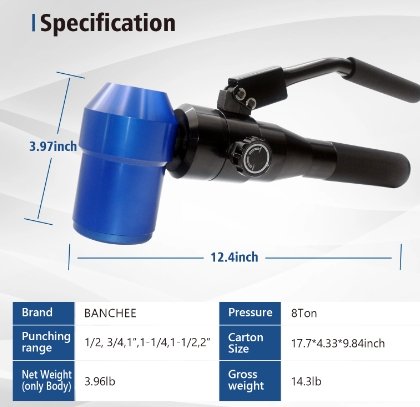

Specifications
Punching Force 66KN
Punching Range Φ22.5-61.5mm in the 3.5mild steel
Stroke 22mm
Weight approx. 2.2kg
Package plastic box

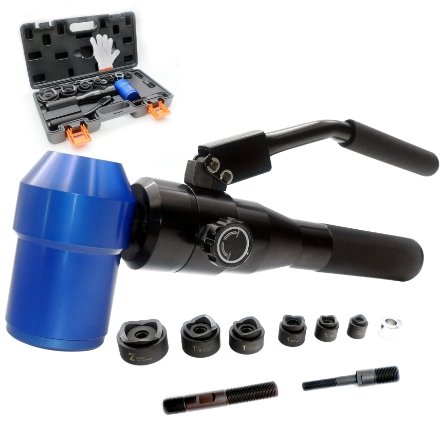

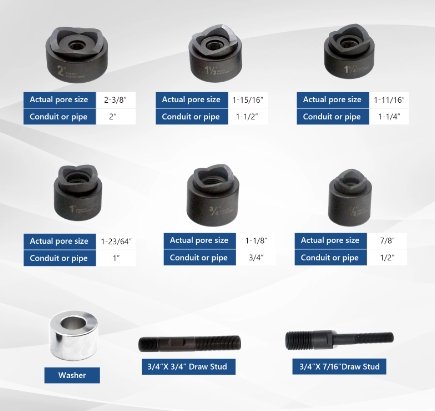

Accessories round knock out Punches Type D: Φ22.5,Φ28.3，Φ34.6，Φ43.2, Φ49.6,Φ61.5mm 7/16″x 3/4″ Draw Stud: 1 pc
3/4″X 3/4 Draw Stud: 1 pc
Spacer: 1 set
Sealing kit: 1 set
Plastic box: 1 pc
