Cable Cutters & Wire Strippers

SUMA TOOL® Cable Cutters & Wire Strippers

SKU: SUMA-HT-60UNV

Hand crimpers are manual devices used to crimp wires, cables, and other ductile materials. Voice and data crimping dies are used to crimp voice and data connectors. Manual hydraulic hose crimpers are handheld hose crimping tools that feature air-assisted pressure.

As each cable size can be connected to a variety of different terminals, no single crimping tool can handle every job. There are three basic types of crimping tools: handheld, hydraulic, and hammer.

Recommended for: Electrical Work, Telecommunications, Aerospace, Automotive Industries.

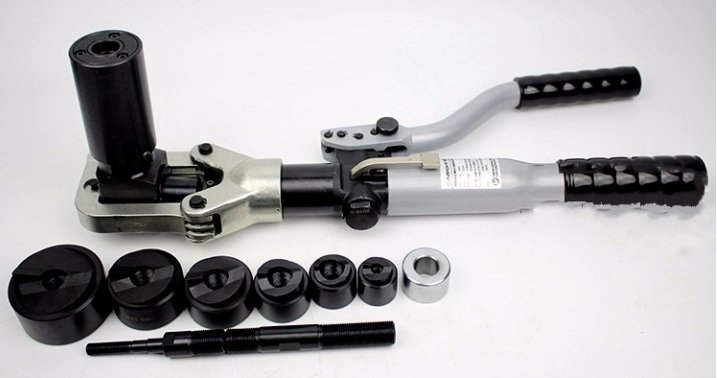

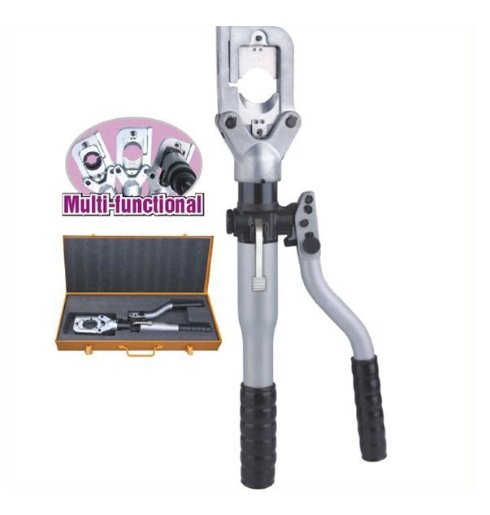

Mulit Function Hydraulic Powered Tool HT-60UNV with Cut, Punch & Crimp in One Tool

HT-60UNV Mulit Tool,Hydraulic Crimping Tool,crimping range of Cu 16-300mm2 Al 10-240mm2,cutting range of φ40mm for Cu/Al cable and armoured Cu/Al cable,punching range of φ22.5-φ61.5mm in the 3.5mm mild steel

One head for crimping, cutting and punching
Universal head rotates 350°, flip top style
Two hydraulic stages
Automatic pressure release when crimp is complete
Manual retract after working.

Mulit Function Hydraulic Powered Tool HT-60UNV with Cut, Punch & Crimp in One Tool

Working Force 60KN
Stroke 42mm
Cutting Range Φ45mm(Cu/Al and armoured Cu/Al cable)
Crimping Range Cu16-300mm2  AL 10-240mm2
Punching Range The thickness below 3mm (Φ16.5-60.5mm) for mild steel
The thickness below 2mm (Φ16.5-115.5mm) for mild steel
The thickness below 2mm (Φ16.5-60.5mm) for stainless steel
Length 540mm
Weight 3.5kg

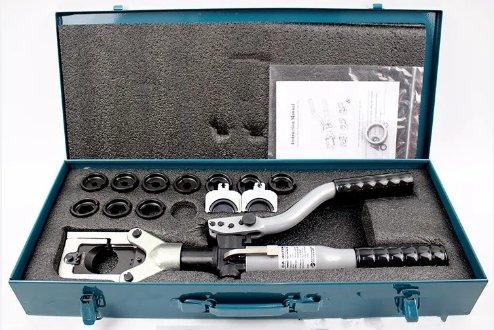

Package Steel case
Accessories
Adapter for crimping 1pc
Adapter for punching 1pc
Crimping die 16,25,35,50,70,95,120,150,185,240,300 mm2
Blade 1pc
Round punch Φ22, 28, 34, 43, 49, 60.5mm
