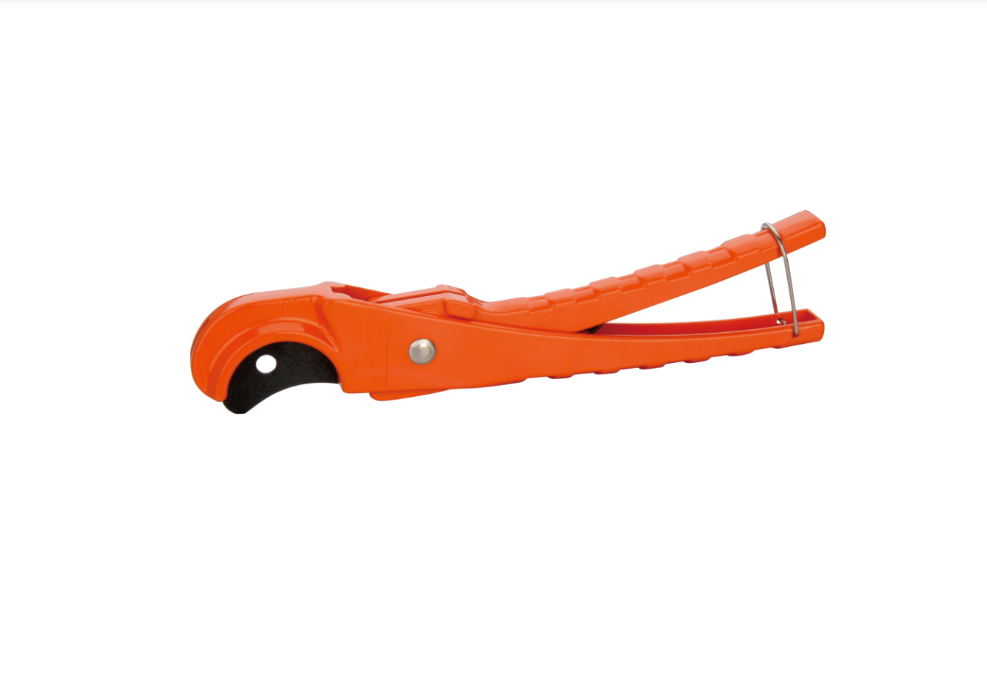

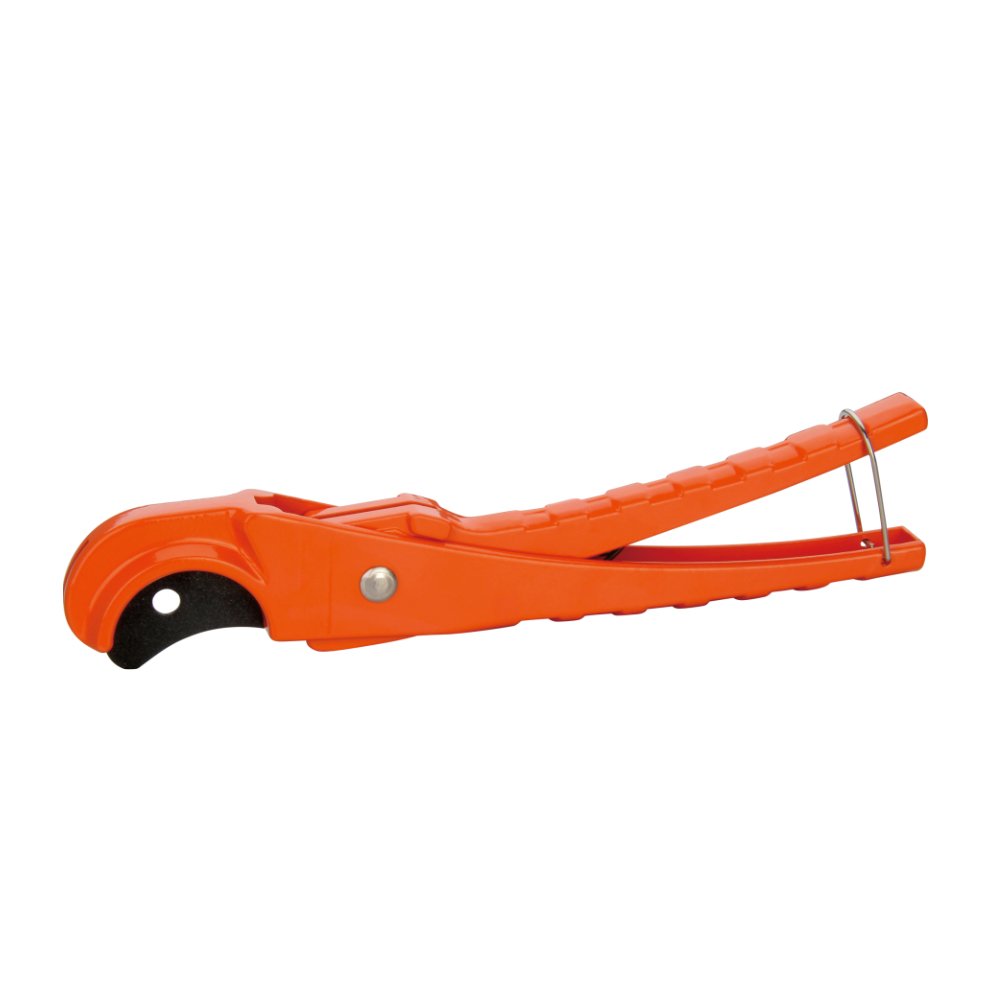

SUMA-C002 is a one-handed manual pipe cutter for 16-32 mm PEX, PEX-AL-PEX, PPR and PVC pipes. The aluminum alloy handle and wider 32 mm cutting capacity make it suitable for plumbing and heating tool ranges that cover both plastic and multi-layer composite pipe.
The SUMA-C002 is a manual pipe cutter designed for PEX, PEX-AL-PEX, PPR and PVC pipes with outside diameters from 16 mm to 32 mm. It is used to cut and prepare plastic and multi-layer composite pipe before connection in plumbing and heating installations.
The cutter combines one-handed manual operation with an aluminum alloy handle. During pipe preparation, the installer can operate the cutter with one hand while using the other hand to hold or position the pipe. No battery, charger or external power supply is required.
Its aluminum alloy handle also provides a confirmed metal-handle option for distributors, pipe and fitting brands, and private-label buyers building a broader plastic and multi-layer pipe tool range.
SUMA-C002 covers pipe outside diameters from 16 mm to 32 mm. The larger upper range allows installers and distributors to cover commonly used small and medium plastic pipe sizes with one manual cutter, including 32 mm pipe that is outside the confirmed range of SUMA-C001.
The confirmed material range includes PEX, PPR, PVC and PEX-AL-PEX. This allows the model to support both standard plastic pipe preparation and multi-layer composite pipe applications without extending the claim to copper, stainless steel or other metal tubing.
The aluminum alloy handle gives SUMA-C002 a confirmed metal-handle construction. For distributors and private-label buyers, this provides a clear product difference from the plastic-handle SUMA-C001 while retaining manual one-handed operation.
The tool is designed to be operated with one hand, leaving the other hand available to support or position the pipe. As a manual cutter, it can be used without batteries, charging equipment or an external power source.
| Technical Item | Specification |
| Product model | SUMA-C002 |
| Product type | Manual plastic and multi-layer pipe cutter |
| Cutting range | 16-32 mm outside diameter |
| Compatible pipe materials | PEX, PEX-AL-PEX, PPR and PVC |
| Operation method | One-handed manual cutting |
| Handle material | Aluminum alloy |
| Power source | Manual – no battery or electricity required |
| Primary application | Plumbing and heating installations |
Compatible materials: PEX, PEX-AL-PEX, PPR and PVC pipes within the confirmed 16-32 mm outside-diameter range.
Working type: The pipe is positioned in the cutter opening and cut by manually closing the handles. The one-handed mechanism does not require a battery, hydraulic pump or external power source.
Application limitation: The supplied information does not confirm use with copper, stainless steel, aluminum tube, CSST or other metal tubing. These materials should not be added to the product page unless confirmed by model-specific testing.
OEM and private-label options can be discussed for distributors, pipe system brands and hardware wholesalers. The available configuration should be confirmed according to the order quantity and approved sample.
SUMA-C002 is specified for pipes with an outside diameter from 16 mm to 32 mm.
The confirmed compatible materials are PEX, PEX-AL-PEX, PPR and PVC.
Yes. PEX-AL-PEX multi-layer composite pipe is included in the confirmed material range.
The handle is made from aluminum alloy.
Yes. The cutter is designed for one-handed manual operation during pipe preparation.
No. SUMA-C002 is a manual pipe cutter and does not require an external power source.
SUMA-C002 cuts pipe up to 32 mm, includes confirmed PEX-AL-PEX compatibility and uses an aluminum alloy handle. SUMA-C001 is specified for 16-25 mm PEX, PPR and PVC pipe and has a plastic handle.
Yes. Pipe and fitting brands can provide samples for cutting and compatibility evaluation before an OEM order is confirmed.
These OEM options can be discussed according to the required quantity, approved sample and packaging requirements.
It is intended for distributors, pipe and fitting brands, wholesalers, contractors and private-label buyers that need a manual cutter for 16-32 mm plastic and PEX-AL-PEX pipe.
