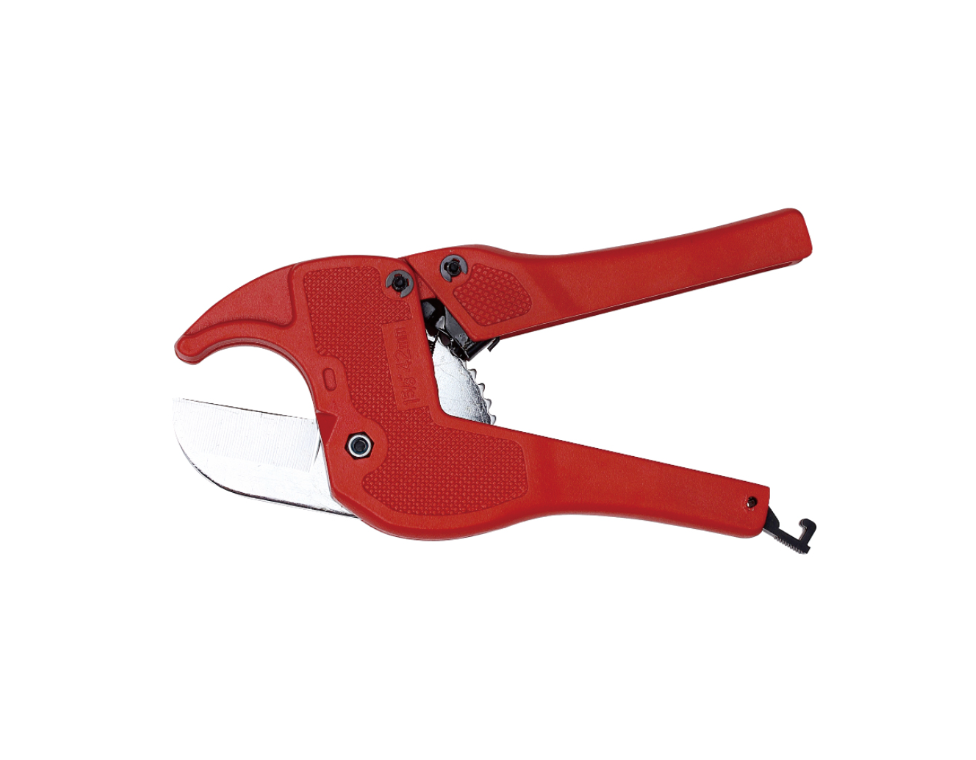

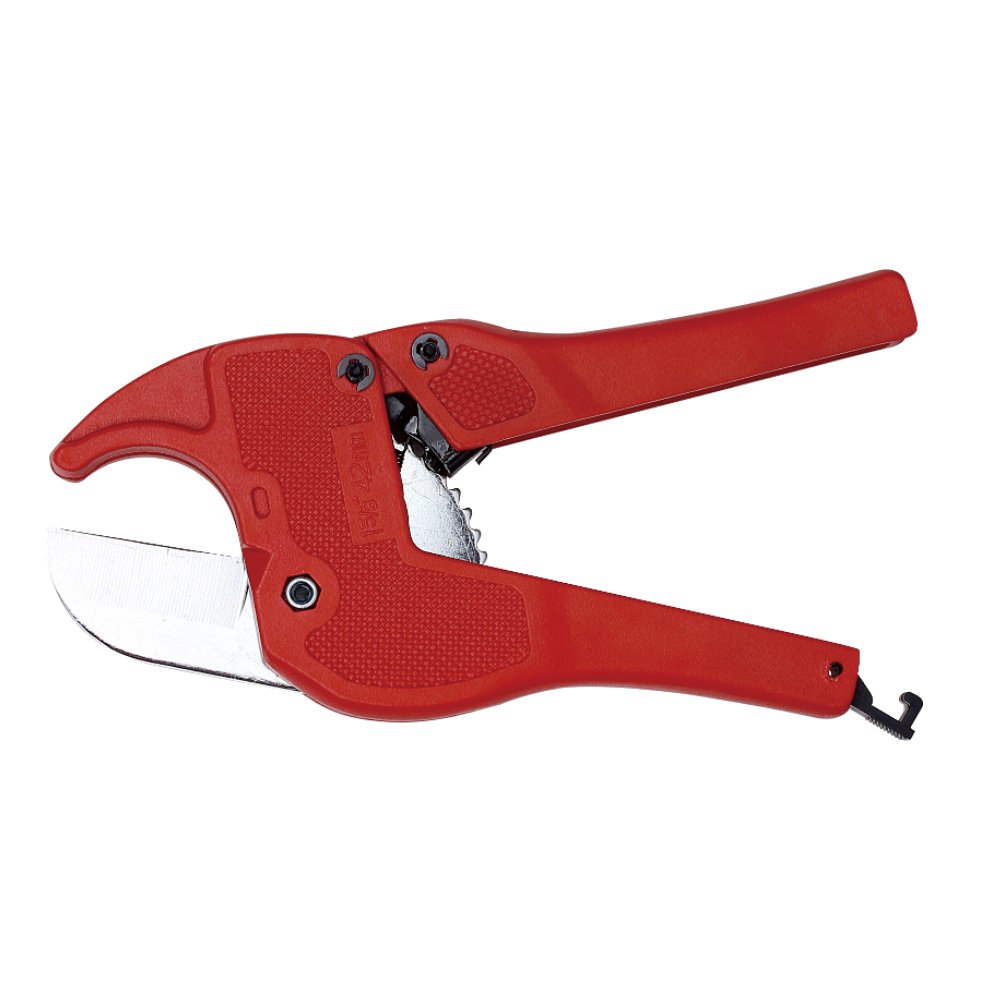

SUMA-C003 is a ratchet pipe cutter for 16-32 mm PEX, PEX-AL-PEX, PPR and PVC pipes. Its progressive ratcheting cutting action and one-handed manual operation make it suitable for plumbing and heating pipe preparation without batteries or external power.
The SUMA-C003 is a manual ratchet pipe cutter designed for PEX, PEX-AL-PEX, PPR and PVC pipes with outside diameters from 16 mm to 32 mm. It is used to cut and prepare plastic and multi-layer composite pipe before connection in plumbing and heating installations.
Its confirmed ratcheting cutting structure advances the cutting action progressively as the handle is operated. This gives installers a step-by-step manual cutting method while retaining one-handed operation and requiring no battery, charger or external power supply.
For distributors, pipe and fitting brands, and private-label buyers, SUMA-C003 provides a 16-32 mm cutter with a clearly differentiated ratchet operating type. The model can be positioned in a product range for customers working with both standard plastic pipe and PEX-AL-PEX multi-layer composite pipe.
The confirmed ratchet mechanism advances the cutting action in progressive steps as the handle is operated. This operating type gives installers controlled manual blade movement through the pipe instead of relying on one continuous closing stroke, and it gives buyers a clear structural difference when selecting a pipe cutter for their range.
SUMA-C003 covers pipe outside diameters from 16 mm to 32 mm. The range includes common small and medium pipe sizes used in plumbing and heating installations and extends beyond the confirmed 25 mm maximum cutting range of SUMA-C001.
The confirmed material range includes PEX, PPR, PVC and PEX-AL-PEX. This allows the cutter to support both plastic pipe preparation and multi-layer composite pipe applications without extending the claim to copper, stainless steel or other metal tubing.
The cutter is designed for one-handed manual operation, leaving the other hand available to support or position the pipe during preparation. It can be used without charging equipment, hydraulic power or an external electricity supply.
| Technical Item | Specification |
| Product model | SUMA-C003 |
| Product type | Manual ratchet pipe cutter |
| Cutting range | 16-32 mm outside diameter |
| Compatible pipe materials | PEX, PEX-AL-PEX, PPR and PVC |
| Cutting mechanism | Ratcheting cutting action |
| Operation method | One-handed manual cutting |
| Power source | Manual – no battery or electricity required |
| Primary application | Plumbing and heating installations |
Compatible materials: PEX, PEX-AL-PEX, PPR and PVC pipes within the confirmed 16-32 mm outside-diameter range.
Working type: The pipe is positioned in the cutter opening, and repeated manual operation of the handle advances the ratcheting cutting action progressively through the pipe. The cutter is operated by hand and does not require a battery, hydraulic pump or external power source.
Application limitation: The supplied information does not confirm the permitted pipe wall thickness or use with copper, stainless steel, aluminum tube, CSST or other metal tubing. These specifications and materials should not be added unless confirmed by model-specific testing.
OEM and private-label options can be discussed for distributors, pipe system brands and hardware wholesalers. The available configuration should be confirmed according to the required quantity and approved sample.
SUMA-C003 is specified for pipes with an outside diameter from 16 mm to 32 mm.
The confirmed compatible materials are PEX, PEX-AL-PEX, PPR and PVC.
Yes. PEX-AL-PEX multi-layer composite pipe is included in the confirmed material range.
Repeated manual operation of the handle advances the cutting action progressively through the pipe.
Yes. The catalog specifies easy one-handed cutting for this pipe cutter range.
No. SUMA-C003 is a manual ratchet pipe cutter and does not require an external power source.
SUMA-C003 uses a ratcheting cutting action and covers 16-32 mm PEX, PEX-AL-PEX, PPR and PVC pipe. SUMA-C001 covers 16-25 mm PEX, PPR and PVC pipe and has a plastic handle.
Yes. Pipe and fitting brands can provide samples for cutting and compatibility evaluation before an OEM order is confirmed.
These OEM options can be discussed according to the required quantity, approved sample and packaging requirements.
It is intended for distributors, pipe and fitting brands, wholesalers, contractors and private-label buyers that need a ratchet cutter for 16-32 mm plastic and PEX-AL-PEX pipe.
