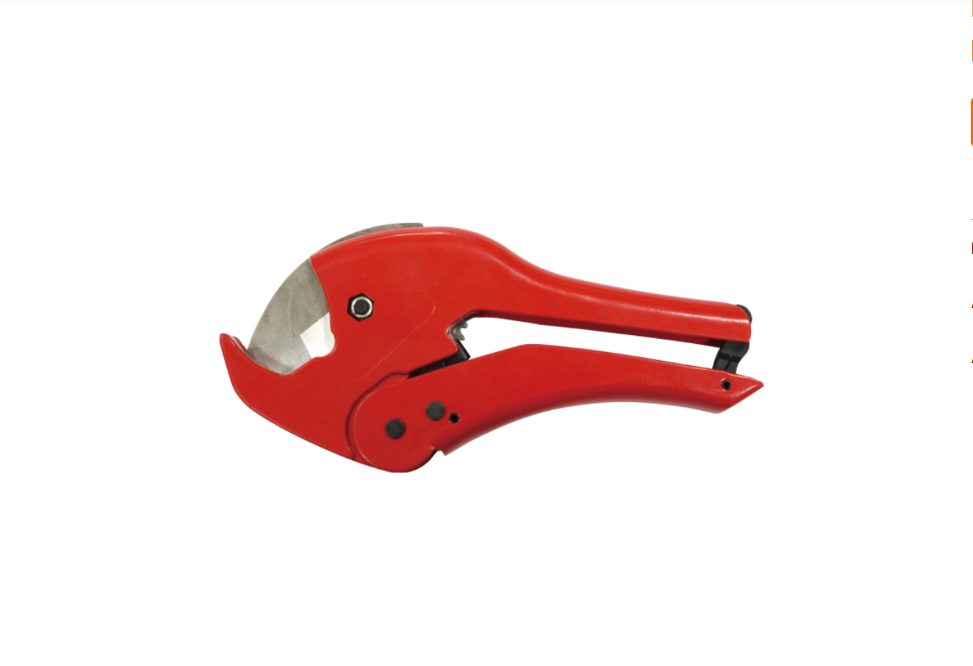

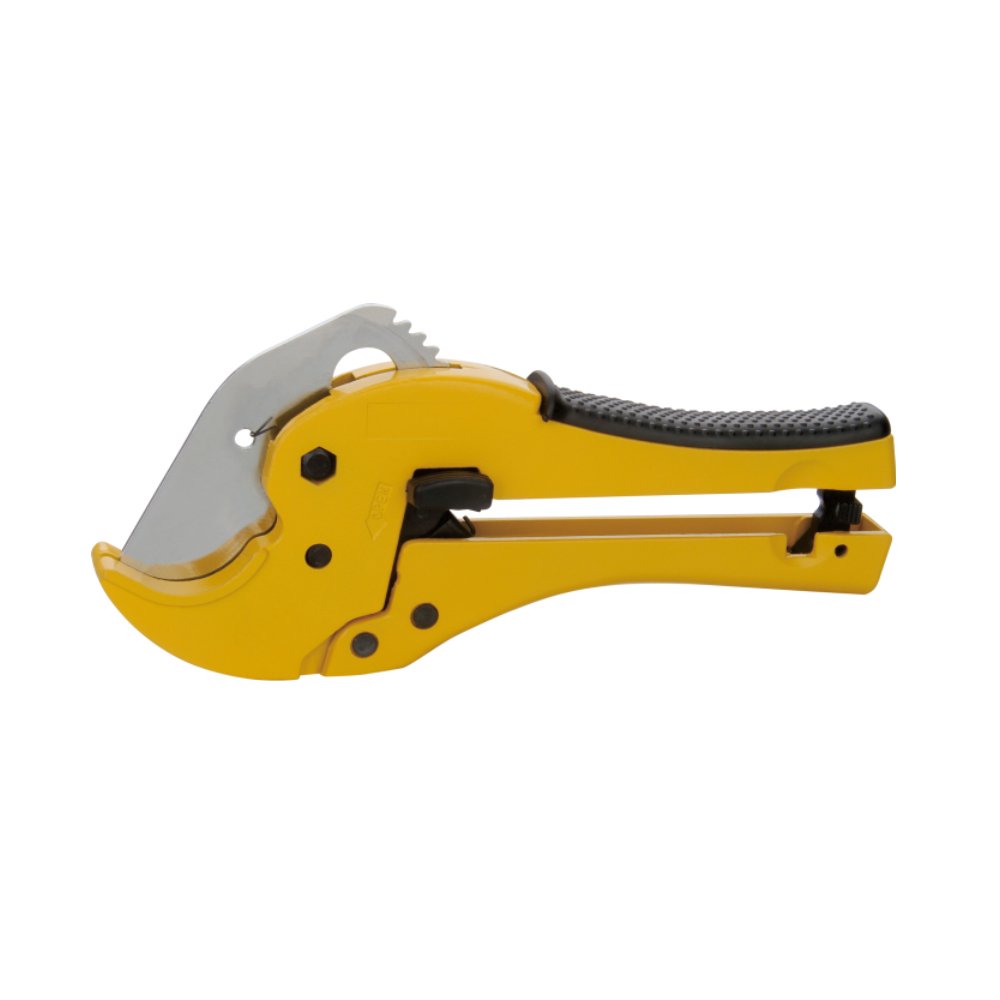

SUMA-C004 is a ratchet pipe cutter for 16-32 mm PEX, PEX-AL-PEX, PPR and PVC pipes. Its progressive cutting action and ABS+TPR overmolded handle provide one-handed manual operation with a comfortable grip for plumbing and heating pipe preparation.
The SUMA-C004 is a manual ratchet pipe cutter designed for PEX, PEX-AL-PEX, PPR and PVC pipes with outside diameters from 16 mm to 32 mm. It is used to cut and prepare plastic and multi-layer composite pipe before connection in plumbing and heating installations.
Its ratcheting mechanism advances the blade progressively as the handle is operated. The handle combines an ABS structure with TPR overmolding, creating a comfortable grip surface for manual cutting while retaining one-handed operation and requiring no battery or external power supply.
SUMA-C004 is intended for plumbing tool distributors, pipe and fitting brands, hardware wholesalers and private-label buyers that need a 16-32 mm cutter for both standard plastic pipe and PEX-AL-PEX applications. Its confirmed point of difference is the combination of ratchet cutting and an ABS+TPR overmolded handle.
The ratchet mechanism advances the blade in progressive steps as the handle is operated. This working type allows the cutting stroke to build through repeated handle movement and gives buyers a clearly defined ratchet-style option for plastic and multi-layer pipe preparation.
The handle uses an ABS base with TPR overmolding on the grip area. The TPR-covered contact surface is designed to provide a comfortable grip during manual cutting, making the handle construction a practical differentiating feature for installers and distributors evaluating similar 16-32 mm pipe cutters.
SUMA-C004 covers pipe outside diameters from 16 mm to 32 mm. This range includes common small and medium pipe sizes used in plumbing and heating installations and supports buyers that need one cutter for several pipe diameters within the confirmed range.
The confirmed material range includes PEX, PPR, PVC and PEX-AL-PEX. The cutter can therefore be specified for both standard plastic pipe preparation and multi-layer composite pipe applications without extending the claim to copper, stainless steel or other metal tubing.
The cutter is designed for one-handed manual operation, leaving the other hand available to support or position the pipe during preparation. It can be used without a battery, charger, hydraulic pump or external electricity supply.
| Technical Item | Specification |
| Product model | SUMA-C004 |
| Product type | Manual ratchet pipe cutter |
| Cutting range | 16-32 mm outside diameter |
| Compatible pipe materials | PEX, PEX-AL-PEX, PPR and PVC |
| Cutting mechanism | Ratcheting cutting action |
| Handle material | ABS with TPR overmolding |
| Operation method | One-handed manual cutting |
| Power source | Manual – no battery or electricity required |
| Primary application | Plumbing and heating installations |
Compatible materials: PEX, PEX-AL-PEX, PPR and PVC pipes within the confirmed 16-32 mm outside-diameter range.
Working type: The pipe is positioned in the cutter opening, and repeated manual operation of the ABS+TPR handle advances the ratcheting cutting action progressively through the pipe. The cutter is operated by hand and does not require a battery, hydraulic pump or external power source.
Application limitation: The supplied information does not confirm the permitted pipe wall thickness or use with copper, stainless steel, aluminum tube, CSST or other metal tubing. These specifications and materials should not be added unless confirmed by model-specific testing.
OEM and private-label buyers seeking a ratchet-style cutter for their branded plumbing tool range.
OEM and private-label options can be discussed for distributors, pipe system brands and hardware wholesalers. The available configuration should be confirmed according to the required quantity, handle construction and approved sample.
SUMA-C004 is specified for pipes with an outside diameter from 16 mm to 32 mm.
The confirmed compatible materials are PEX, PEX-AL-PEX, PPR and PVC.
Yes. PEX-AL-PEX multi-layer composite pipe is included in the confirmed material range.
Repeated manual operation of the handle advances the cutting action progressively through the pipe.
The handle uses ABS with TPR overmolding on the grip area.
The TPR-covered grip area is designed to provide a comfortable hand contact surface during manual cutting.
Yes. The catalog specifies easy one-handed cutting for this pipe cutter range.
No. SUMA-C004 is a manual ratchet pipe cutter and does not require an external power source.
Yes. Pipe and fitting brands can provide samples for cutting and compatibility evaluation before an OEM order is confirmed.
These OEM options can be discussed according to the required quantity, approved sample and packaging requirements.
